The Ultimate Guide to High-Performance Bagger Suspension Upgrades

Most riders think “performance suspension” simply means stiffer springs. It doesn’t. True performance comes from geometry, rigidity, and controlled damping. Whether you’re building a track-ready bagger or a confidence-inspiring canyon carver, this guide explains exactly what needs to change—and why.

  • Front End Upgrades: Rigidity and Control

    Stock Harley-Davidson Touring forks use 49mm tubes that struggle to control the weight of a heavy motorcycle under hard braking. This results in flex, brake dive, and vague steering feel.

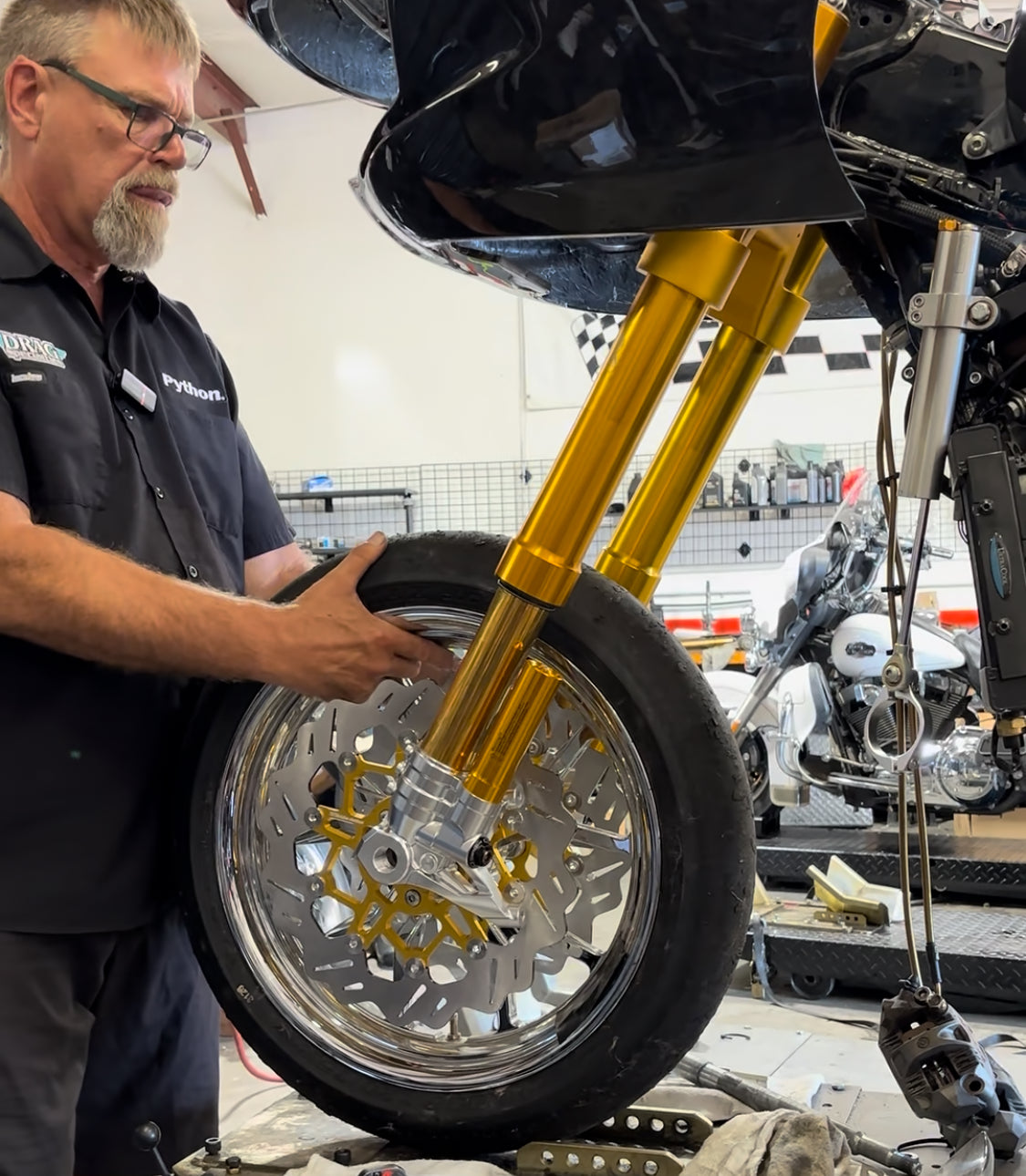

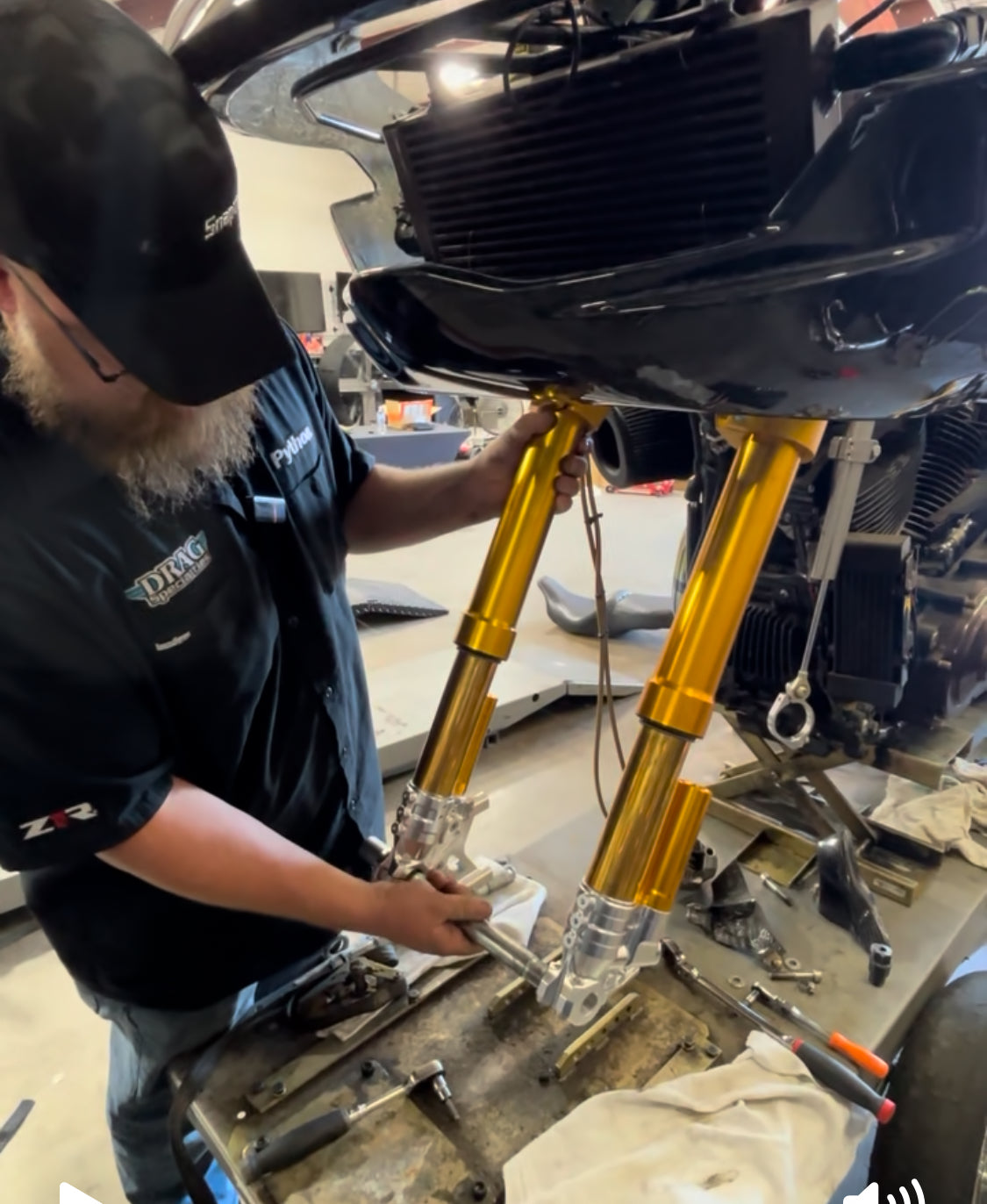

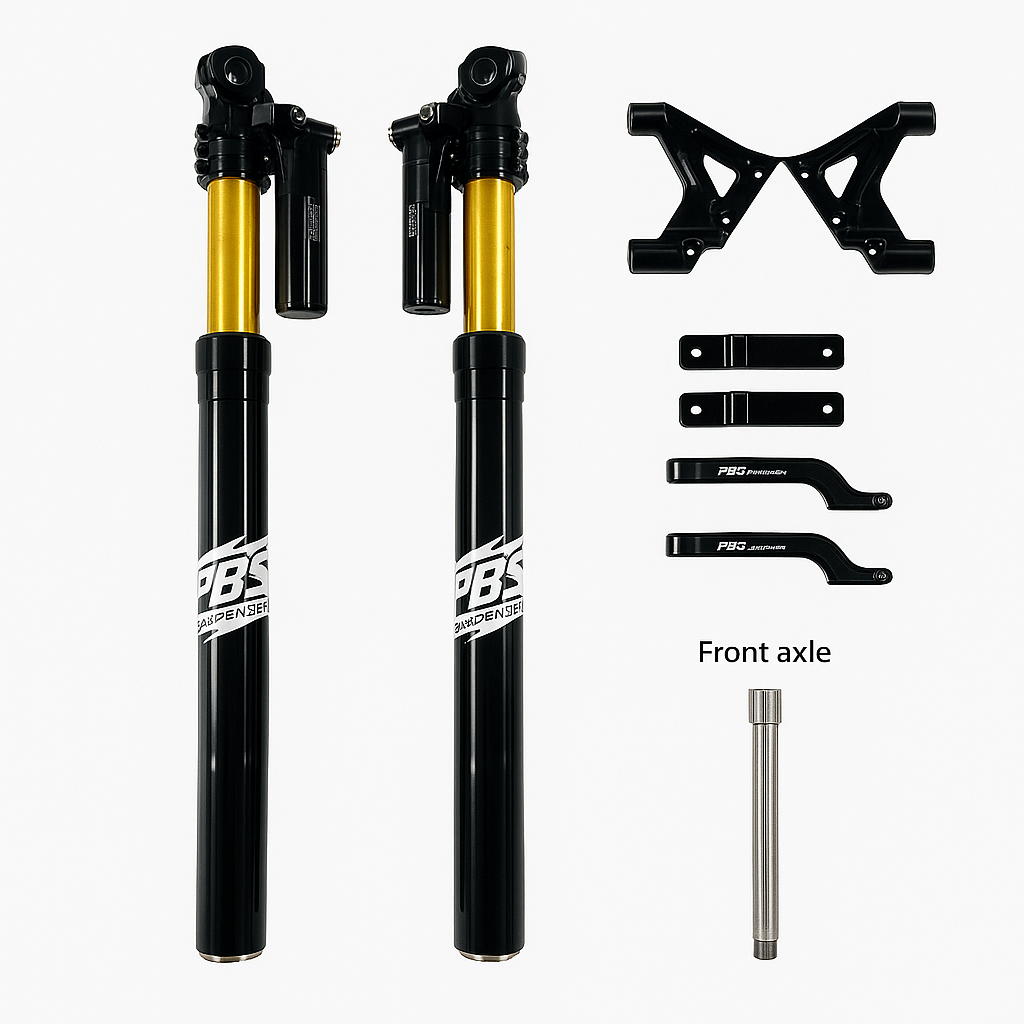

  • The Fix: Inverted Front Ends

    Inverted front ends move the larger diameter tubes—55mm or 58mm—up into the triple trees, dramatically increasing rigidity. This eliminates fork flex, allowing harder braking, improved feedback, and precise steering control.

  • The Mid-Tier Option: Cartridge Kits

    If a full inverted front end is out of budget, cartridge kits replace the basic internal damper rods with sophisticated valving systems that improve compression and rebound control.
Building a front end? View our Inverted Fork Kits or Cartridge Upgrades.

Geometry Explained: Offset and Trail

This is the secret most shops never explain.

Trail is the distance between the tire’s contact patch and the steering axis. Stock Harley-Davidson geometry is designed for straight-line stability, which makes the bike feel heavy and slow to turn.

Performance geometry uses triple trees with a modified offset to reduce trail. This makes the bike feel lighter, turn in faster, and corner with less effort—without sacrificing high-speed stability.

If you raise rear ride height, correcting front-end geometry becomes mandatory to avoid a “tippy” or unstable feel.

Correct your geometry with our 3-Inch Drop Triple Trees.

Rear Suspension: Ride Height Matters

Most stock Touring models use 12"–13" rear shocks. While a low stance looks good, it severely limits cornering performance.

The Case for 14”–16” Shocks

Raising rear ride height increases lean angle and ground clearance, allowing the bike to corner harder without dragging floorboards or exhaust components.

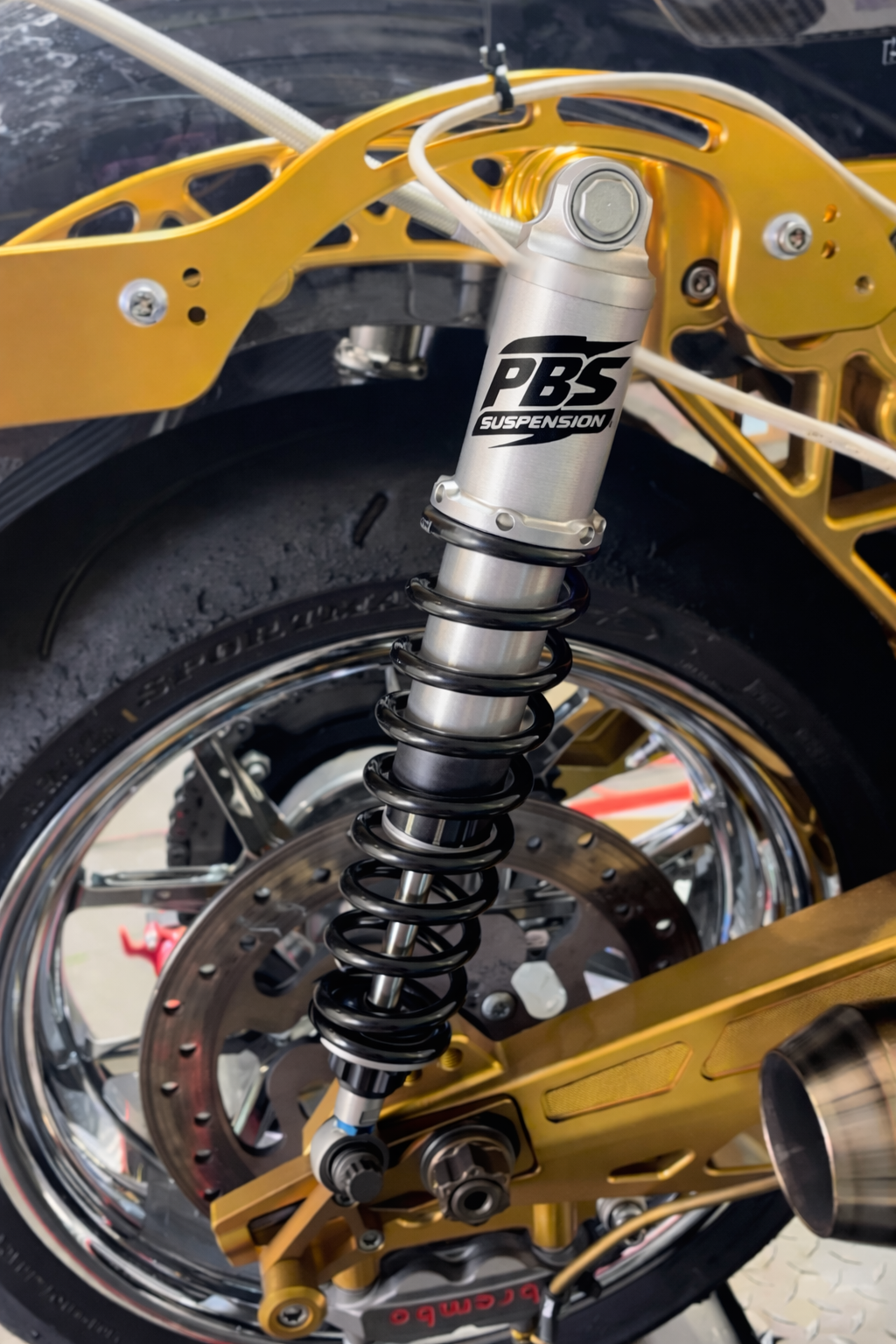

Remote Reservoir Shocks

For aggressive riding, remote reservoir shocks are critical. They hold more oil, dissipate heat better, and maintain consistent damping even during long, aggressive rides or track sessions.

Compare Rear Shock Options View 16-Inch Race Shocks

Chassis Stabilization

The infamous “bagger wobble” often comes from the rear swingarm moving independently of the transmission. Chassis stabilizers and performance swingarms lock these components together, ensuring the rear wheel tracks straight and true with the frame under load.
