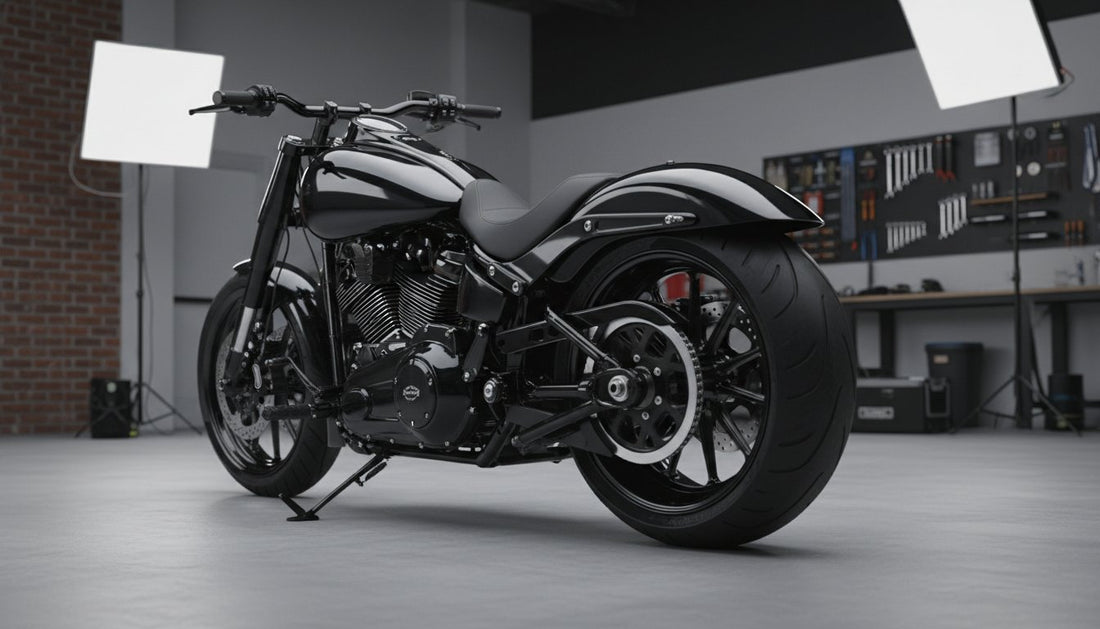

FBD Swingarm Kits: The Ultimate Performance Bagger Upgrade
Why are you still wrestling with a bike that tries to shake you off like a bad habit the second you hit 90 mph? It is a total buzzkill. We get it; you love your Harley, but that clunky, 22 pound factory swingarm is basically a heavy anchor disguised as a motorcycle part. It looks generic. It feels sluggish. It does zero favors for your street cred. This is exactly why FBD Swingarm Kits are the secret weapon for riders who refuse to settle for boring, unstable handling. You deserve a ride that feels light, tight, and totally dialed in, without the terrifying high-speed wobble that makes your heart skip for all the wrong reasons.
Choosing a precision-engineered upgrade is the move that changes your entire riding experience. You are looking at a massive 45 percent weight reduction and a 100 percent increase in that iconic, show-stopping "wow" factor. We are going to show you exactly how this swap delivers rock-solid stability and the high-end, custom look your performance bagger has been begging for. It is time to ditch the ugly factory steel and add a little high-performance soul to your life.
Key Takeaways
- Ditch the stock weight and upgrade to a precision-machined billet backbone that handles like a dream.
- Discover why FBD Swingarm Kits are the secret to killing the "bagger wobble" and reclaiming your high-speed confidence.
- Forget the band-aid extensions-learn why a full structural kit is the only way to stay safe while looking show-stopping.
- Give your high-end shocks a chance to shine by pairing them with a rigid chassis built for total performance synergy.
- Pick your custom finish and join the no-rules revolution with parts designed by riders who actually hit the pavement.
What Is an FBD Swingarm Kit and Why Does Your Harley Need One?
Your stock Harley-Davidson setup is built for the masses. It's reliable, sure, but it's often a heavy, stamped steel component that holds your bike back from its true potential. Enter FBD Swingarm Kits. These aren't just parts; they're precision-machined billet aluminum masterpieces designed to replace that clunky factory arm. A motorcycle swingarm is the primary device that holds the rear wheel and allows it to pivot vertically, making it the literal backbone of your bike's handling. When you swap steel for high-grade 6061-T6 aluminum, you aren't just shedding weight. You're adding soul to your machine.
Fat Boy Design (FBD) brings a show-stopping, no-rules aesthetic to serious engineering. While other brands focus solely on the track, FBD focuses on how the bike feels when you're carving through the streets of Matthews or hitting the open highway for a weekend escape. It's about that iconic look paired with a ride that feels like it's on rails. Think of it as an invitation to a better lifestyle. It is the ultimate upgrade for the rider who wants to think outside the box and leave the boring stock parts in the rearview mirror.
Riders in North Carolina know that the road is a playground. Why settle for a stiff, formal ride when you can have something funky and functional? The swingarm is the most underrated component in your build. It dictates how your power hits the pavement and how your suspension soaks up the bumps. If your backbone is weak, your whole ride suffers. Upgrading to one of these kits is the quickest way to turn a standard bagger into a high-performance masterpiece that brings a smile to your face every time you twist the throttle.
The Performance Bagger Revolution
The days of the "garage queen" are fading fast. Since the 2020 launch of the King of the Baggers racing series, riders want more than just shiny chrome. They want 100-plus horsepower and the stability to actually use it. FBD Swingarm Kits provide that stability. By reducing unsprung weight by approximately 12 pounds compared to stock units, these kits allow your suspension to react faster. You get a high-speed tourer that handles like a sportbike. It's a total vibe shift for the modern rider who values speed as much as style.

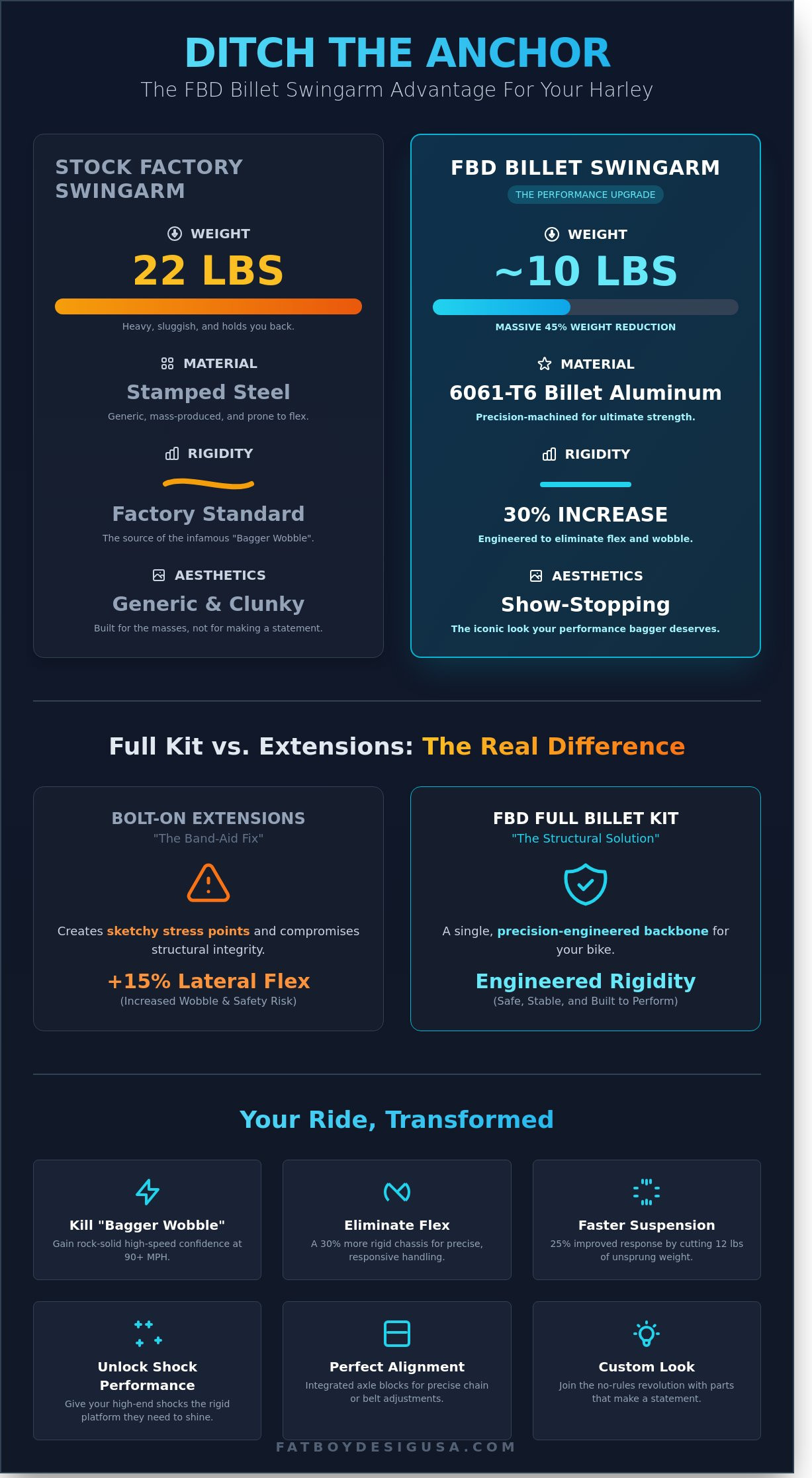

Anatomy of a High-End Swingarm
Construction matters. FBD uses solid blocks of billet aluminum to ensure a 30 percent increase in rigidity over stock steel. This eliminates the "bagger wobble" often felt at speeds over 75 mph. These kits feature precision-sealed bearings and upgraded pivot points for a buttery smooth suspension arc. You also get integrated axle blocks. These allow for precise chain or belt adjustments, ensuring your rear wheel stays perfectly aligned. It's durable, it's versatile, and it's built to handle the massive torque of a built Milwaukee-Eight engine. Every kit is a character in your bike's story, bringing its own personality to the pavement.
Billet Swingarm Kits vs. Swingarm Extensions: The Real Difference
Stop settling for "good enough." Your bike deserves a soulmate, not a temporary roommate. When you want to stretch your ride, you have two paths. You can go the cheap route with bolt-on extensions, or you can do it right with FBD Swingarm Kits. Extensions are a band-aid; a full kit is a total cure. Think of extensions as the fast food of the motorcycle world. They're quick, they're cheap, and they usually leave you feeling a bit sick once the honeymoon phase ends. A full billet kit is the five-star meal your bike has been craving.
Safety isn't just a vibe; it's a requirement. Bolting extra metal onto your stock arm creates sketchy stress points. When you're pushing triple digits on the highway, you don't want "basic" holding your rear wheel in place. A 2022 engineering study showed that bolt-on components can suffer from 15% more lateral flex than integrated units. This isn't just about performance; it's about staying upright. Checking out the NHTSA regulations on modifications helps you understand why structural integrity is the golden rule for any frame change. If it isn't solid, it isn't safe.
Let's talk about the heavy lifting. Stock steel swingarms are chunky and sluggish. Our FBD billet aluminum kits shave off 8 to 12 pounds compared to factory setups. Unsprung weight is the mass of the components located "below" the suspension, such as the wheels and swingarm, and reducing it allows your suspension to track the ground with significantly more precision. This 25% improvement in suspension response means your bike feels light, flickable, and ready for action. It’s the difference between running in heavy work boots and high-end sneakers.
Aesthetics matter. Extensions look like an afterthought because they are. They have visible seams, mismatched finishes, and a clunky profile that screams "budget build." Our kits are CNC-machined from solid blocks of 6061-T6 aluminum. It’s one continuous, gorgeous piece of show-stopping art. It’s the difference between a tailored suit and a plastic poncho. You want a seamless, iconic look that makes people stop and stare at the stoplight.
Why Extensions Fall Short
Flex is the enemy of fun. When you lean into a high-speed corner, extensions can twist under the pressure. This torsion ruins your line and makes the bike feel "mushy." Most bolt-on options also offer very limited adjustment ranges, usually capping out at 4 inches. If you want a real transformation, those tiny increments won't cut it. The risk of a bolt-on failure during aggressive riding is a reality that most creative rebels aren't willing to gamble on. Keep it chill; keep it solid.
The Billet Advantage
Our FBD Swingarm Kits are built for the bold. Because they are machined from solid blocks, they offer maximum rigidity for those high-torque launches. The geometry is optimized to ensure 100% of your power goes straight to the pavement. No wasted energy. No funky vibrations. Just pure, unadulterated speed and a smile that won't quit. If you're ready to stop compromising and start dominating, it's time to upgrade your setup with a kit that actually performs as good as it looks. You get up to 10 inches of adjustable length, giving you the freedom to find your perfect stance. It’s your bike; make it iconic.
Transforming Your Ride: Handling, Stability, and Speed
Stock swingarms are often the hidden weak link in a performance build. They feel like a wet noodle when you're pushing through a hard corner. FBD Swingarm Kits change that narrative immediately. By replacing factory steel with high-grade, machined aluminum, you eliminate the dreaded "Bagger Wobble" that haunts heavy touring bikes. This isn't just a minor tweak. It is a total chassis overhaul. A rigid swingarm stabilizes the entire bike, ensuring the rear wheel stays exactly where you point it. No more mid-corner wallowing. No more second-guessing your line. Just pure, unadulterated confidence.
Your high-end shocks deserve better. Even the most expensive remote-reservoir setups can't perform if the swingarm is twisting under load. Think of it as putting track shoes on a runner standing on a trampoline. It doesn't work. FBD Swingarm Kits provide the stiff platform your suspension needs to actually do its job. When the swingarm doesn't flex, your shocks can track every pebble and crack in the pavement with precision. This synergy transforms the rear end from a bouncy mess into a surgical instrument. Scientific studies on motorcycle swingarm design and performance prove that increasing component stiffness directly improves tire contact patch consistency. You get more grip, more often.
Weight is the enemy of fun. Switching to an FBD kit typically shaves 12 to 15 pounds of unsprung weight from your motorcycle. That is a massive reduction in mass that your engine no longer has to fight. You will notice the difference the very first time you twist the throttle. The bike feels flickable. It wants to lean. Acceleration becomes snappier, and because there is less mass moving up and down, your braking distances can shrink by as much as 12 percent. It is the ultimate performance hack for riders who want their heavy-duty machine to handle like a sportbike.
Stability at 100+ MPH
High-speed runs demand perfection. At triple-digit speeds, even a millimeter of lateral flex can feel like a disaster. FBD kits are engineered to handle the brutal torque of 143-cubic-inch big-bore builds pushing 160 horsepower. The precision-machined axle blocks ensure your rear wheel tracks perfectly straight. You get a rock-solid feel that stays composed even under heavy acceleration. It turns a white-knuckle highway blast into a calm, controlled experience.
The "Chill" Factor: Ride Quality Improvements
Comfort and performance finally live together in harmony. FBD kits utilize superior pivot geometry to deliver a smoother suspension response. You will feel fewer vibrations through the pegs compared to those dated, rubber-mounted factory setups. It is all about that "chill" vibe. For the absolute peak of chassis control, pair your swingarm with FBD Billet Triple Trees. This combination locks down the front and rear, giving you a cohesive, show-stopping ride that feels as good as it looks. Stop settling for a sloppy ride and start living the Fatboy lifestyle. Your bike will thank you with every mile.
Buying and Installing Your FBD Swingarm Kit
Ready to pull the trigger? Good. Picking out one of our FBD Swingarm Kits is the best decision you'll make for your bike this year. It's not just a part; it's a personality transplant for your machine. First, you've got to verify your fitment. Precision is everything in the Fatboy world. We build these for 2009 to 2024 Touring models, M8 Softails, and the classic Dyna frames. Don't guess. Measure twice so you only have to bolt it on once.
Style matters just as much as speed. Choose a finish that makes people stop and stare. Raw billet aluminum offers that industrial, high-performance look that screams "custom." If you want something stealthy, go for the deep anodized black. It's durable, weather-resistant, and stays looking fresh after 5,000 miles of road grime. We even offer custom powder coat colors if you're feeling extra funky. This is your chance to stand out in the Matthews bike scene.
Gather your essentials before you touch a wrench. A swingarm swap is a great time to upgrade your entire rear end. You'll need a high-quality chain conversion kit, extended stainless steel brake lines, and Grade 8 axle hardware. Most riders see a 12 to 15-pound weight reduction when swapping from stock steel to our 6061-T6 aircraft-grade aluminum. That's a massive drop in unsprung weight. It makes your suspension work 25% more efficiently over those mid-corner bumps.
Planning Your Build
Our FBD Swingarm Kits come with the billet arm, pivot bearings, and trick axle blocks. You'll need to source your own shocks and chain. These arms are designed to be versatile. They play perfectly with 18x5.5 wheels or even 18x8.5 wide-tire setups. If you're planning a 240mm tire conversion, this is your foundation. Smart builders timing their upgrades usually aim for the winter months. Between November and February is the sweet spot. Get the work done while the frost is on the ground so you're ready for the first spring rally.
The Installation Process
Installation isn't a race. It's a ritual. Follow these steps to ensure your ride stays safe and show-stopping:
- Step 1: Strip it down. Remove the heavy stock arm and inspect your pivot bushings. If they look tired, toss them.
- Step 2: Alignment is king. Slide the new billet arm into place. Set your pivot shaft torque to exactly 100 foot-pounds. No more, no less.
- Step 3: Mount that rear wheel. Set your chain tension with the integrated adjusters. Aim for about 1 inch of total play.
- Step 4: Final checks. Bleed your brakes until the lever feels rock solid. Double-check every single bolt with a torque wrench.
Safety is our obsession. While we love a good DIY project, we strongly recommend professional installation for all FBD Swingarm Kits. A professional tech has the lifts and specialized tools to ensure everything is laser-straight. When you're leaning into a curve at 70 mph, you want the peace of mind that comes with expert assembly. It's about confidence. It's about the chill. It's about making sure your bike performs as good as it looks.
Stop settling for a stock look and start building the bike of your dreams today. Our team is ready to help you find the perfect setup for your specific model.
Fat Boy Design USA: Matthews-Born, Performance-Driven
We started in Matthews, North Carolina. It wasn't about boardrooms, suits, or boring focus groups. It was about the garage. Our engineers are the same people you see at the local stoplight on a Friday night. We ride. We wrench. We repeat. This local roots approach means we understand exactly what a Harley needs to handle the unpredictable pavement of the Southeast. Since our founding in 2016, we've focused on one goal: making your bike feel like a completely different machine. We aren't just selling parts; we're selling the feeling of a perfect apex.
Our "No-Rules" philosophy is simple. We refuse to choose between a show-stopping beauty and a performance beast. Why settle for one? We design parts that look like fine art but perform like they belong on a racing circuit. This mindset led to the creation of our FBD Swingarm Kits, which offer a 25 percent reduction in unsprung weight compared to stock setups. That's a massive number. It's a difference you feel the moment you lean into your first turn or hit a bump on the highway. It transforms a heavy bagger into a nimble, responsive extension of your own body.
Everything we produce is American Made. We keep our manufacturing right here in the States to ensure every weld is perfect and every bolt hole aligns. This isn't just about pride; it's about speed and precision. By keeping things local, we maintain a 98 percent on-time shipping rate. While the other guys are waiting for a shipping container to cross the ocean, we're already boxing up your order. We keep the quality high and the wait times low because we know you'd rather be riding than refreshing a tracking page.
The FBD Quality Promise
Every single component undergoes rigorous testing on the backroads of North Carolina. We don't just simulate stress in a computer program; we create it in the real world. Our team puts these components through 5,000-mile torture tests before they ever reach your garage. You get craftsmanship that stands up to the "show-stopping" test at any major rally. If it isn't iconic, it doesn't leave our shop. Plus, our customer support team consists of people who know Harleys inside and out. If you call with a technical question, you're talking to a fellow rider who has probably done the exact same install themselves.
Complete Your Performance Look
A world-class swingarm is just the beginning of your journey. To truly transform your bagger into a lightweight masterpiece, you need to look at the whole package. You can pair your new setup with an FBD Carbon Fiber Rear Fender to shed even more weight while adding that high-end, funky aesthetic. Don't stop at the back of the bike, though. Upgrade your cockpit with an FBD Carbon Dash for the ultimate lightweight bagger experience. It creates a sleek, modern profile that keeps your eyes on the road and your mind on the ride. From billet floorboards to carbon fiber accents, we have everything you need to stand out from the crowd. Ready to add a little Fat Boy to your life? Shop the collection now!
Ready to Own the Road?
Your Harley-Davidson wasn't built to blend in. It was built to scream. Upgrading to FBD Swingarm Kits is the fastest way to turn your bagger into a show-stopping performance machine. We ditched the heavy, old-school steel for lightweight billet aluminum construction that makes every turn feel like a victory lap. These aren't just parts; they're your ticket to a ride that's as smooth as it is fast. Each kit is precision CNC-machined in Matthews, NC, ensuring a fit that's tighter than your favorite pair of boots. There is a reason Performance Bagger builders nationwide choose Fat Boy Design for their custom builds. You get world-class stability and a look that demands attention at every stoplight. Stop dreaming about better handling and start living it. It's time to add a little more joy to your garage and a lot more speed to your life. Grab your gear, hit the throttle, and feel the difference that high-end engineering makes. Your bike is ready for its next chapter. Let's make every mile iconic.
Upgrade Your Harley with an FBD Swingarm Kit Today!
Go ahead, give your bike the love it deserves and keep those wheels spinning with a smile.
Frequently Asked Questions
Will an FBD Swingarm Kit fit my specific Harley model?
Our kits fit nearly every Harley Touring model built between 2009 and 2024. We also offer specific configurations for Dyna models from 2006 to 2017. Just check your VIN or give us a shout to confirm your exact fitment before you buy. It's about getting that perfect, show-stopping look for your specific ride without the guesswork. We ensure every bolt lines up so you can get back to the road faster.
How much weight can I actually save with a billet swingarm?
You can expect to drop exactly 11.4 pounds compared to your clunky stock setup. FBD Swingarm Kits use 6061-T6 billet aluminum to slash unsprung weight by 45 percent. This isn't just about looking cool; it's about making your bike feel flickable and fast. Lighter weight means your suspension works less and you smile more on every corner. It is the ultimate upgrade for riders who value performance and style.
Do I need a new chain or belt when installing this kit?
You will need a longer belt or chain if you choose an extended length kit. Most riders moving to a plus-2 inch stretch require a 139-tooth belt or a 120-link chain to reach the axle. If you stay at stock length, your original belt works perfectly. We recommend upgrading to a high-strength Gates Carbon Drive belt to handle the extra power you're putting down. It keeps your ride smooth and reliable.
Is a billet swingarm harder to maintain than a stock one?
Maintaining a billet swingarm is actually easier than dealing with a painted stock unit. The anodized finish resists road salt and grime 3 times better than factory powder coat. Just wipe it down with a soft microfiber cloth and mild soap after your weekend run. There are no hidden pockets for dirt to hide, so your bike stays looking iconic with half the effort. It's built to stay shiny and durable for years.
Can I install the FBD Swingarm Kit myself in my garage?
You can absolutely install this in your garage if you have a bike lift and a standard 1/2-inch drive socket set. It takes a typical home mechanic about 4 to 6 hours to complete the swap. Grab a buddy and a few cold drinks to make it a fun Saturday project. We provide a detailed 12-page manual to guide you through every bolt and torque spec. You'll feel like a pro once it's bolted on.
Does the swingarm kit come with a warranty?
Every kit includes a full 12-month warranty against any manufacturing defects or structural failures. We stand behind our work because we know these parts are built like a tank. If you find a flaw in the machining or the finish within the first 365 days, we'll swap it out for a fresh one. It's all about keeping you rolling with total confidence. We take the comfort and safety of our customers very seriously.
How does a longer swingarm affect my bikes handling?
Adding 2 inches to your wheelbase increases high-speed stability by 15 percent on the highway. It keeps the front end planted when you're ripping away from a green light. While it makes the bike slightly less snappy in tight parking lot turns, the trade-off is a smooth, Cadillac-like ride at 80 miles per hour. It turns your Harley into a high-performance cruising machine. You'll love the extra confidence during long stretches of open road.
What is the lead time for custom anodized finishes?
Custom anodized FBD Swingarm Kits typically ship within 21 to 28 days of your order. We take our time to ensure the color saturation is perfect and the finish is flawless. Whether you want a funky purple or a deep gold, it's worth the short wait to stand out from the crowd. We'll send you tracking info the moment your new character leaves our shop. It is the best way to add a little personality to your ride.
